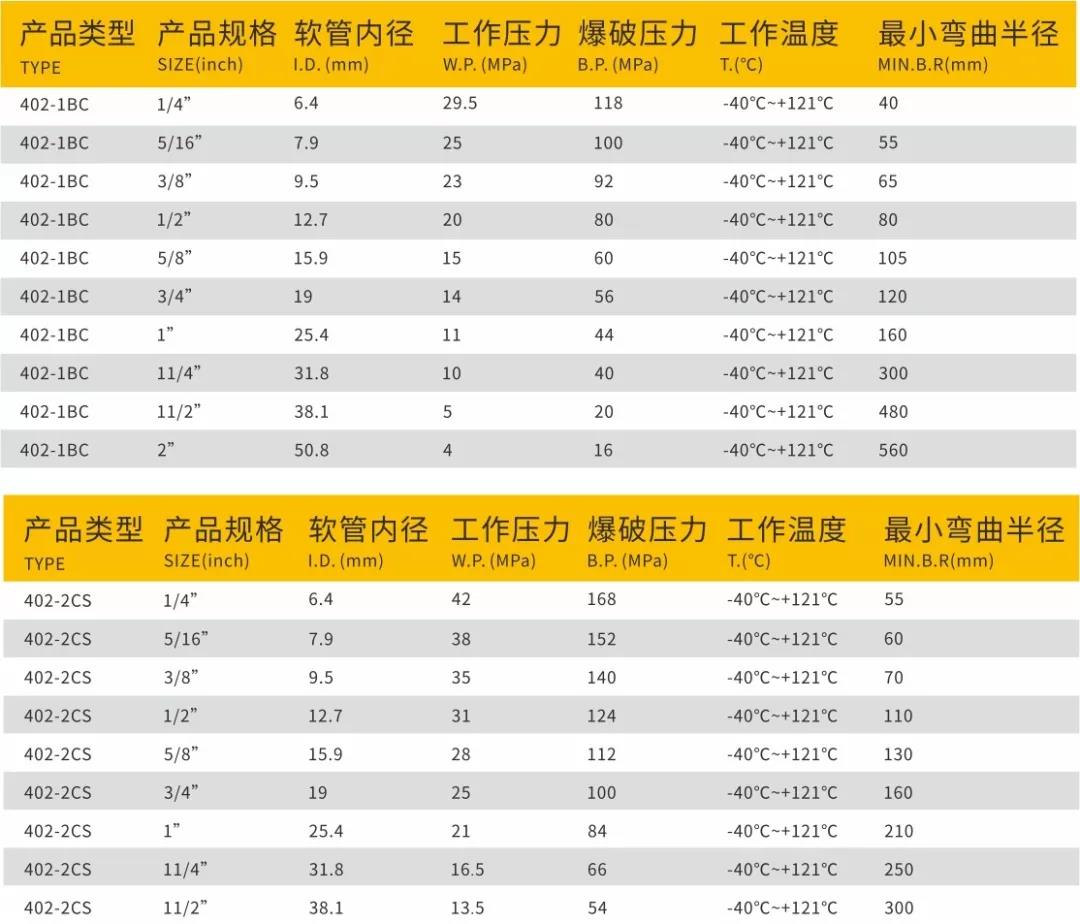

超級大力神鋼絲編織軟管

　　軟管結構

　　內膠層：耐熱油合成橡膠

　　增強層：特殊高強度超柔鋼絲，1層編織脈沖≥30萬次;2層編織脈沖≥60萬次(符合ISO18752-BC、CS標準)

　　外膠層：以耐老化復合橡膠為原料的免剝外膠黑色光面外膠層

　　特性：長壽命：耐天候5年以上，質保2年(使用利通專供一體式軟管接頭)，低彎曲：彎曲半徑低于SAE/DIN標準30%，高壓力：壓力高于SAE/DIN標準25%

　　溫度范圍：-40℃~+121℃(-40℉~+250℉)

　　Hose Construction

　　Inner Tube: hot oil resistant synthetic rubber

　　Reinforcement: special high tensile super flexiblel steel wire, one braid≥300,000 impulse cycles, two braids ≥600,000 impulse cycles(comply with ISO18752-BC、CS standard)

　　Outer Layer: skiving-free black smooth hose cover made of anti-aging synthetic rubber

　　Features: Long service life: weather resistant for more than 5 years and warrantied for 2 years (with Letone specific hose connectors)，Low bending radius: 30% lower than SAE/DIN standards，High pressure: 25% higher than SAE/DIN standards

　　Temperature Range: -40℃~+121℃(-40℉~+250℉)

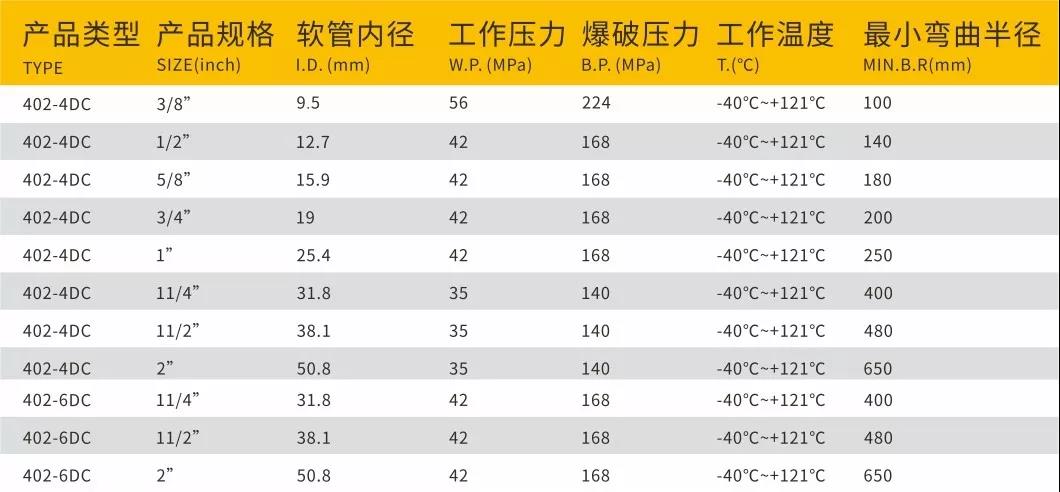

　　超級大力神鋼絲纏繞軟管

　　軟管結構

　　內膠層：耐熱油合成橡膠

　　增強層：多層高強度超柔鋼絲，4層纏繞脈沖≥100萬次(符合ISO18752-DC標準)

　　外膠層：以耐老化復合橡膠為原料的免剝外膠黑色光面/毛面外膠層

　　特性：高壓力，低彎曲，長壽命(使用利通專供一體式軟管接頭,耐天候5年以上，質保2年)

　　溫度范圍：-40℃~+121℃(-40℉~+250℉)

　　Hose Construction

　　Inner Tube: hot oil resistant synthetic rubber

　　Reinforcement: multispiral high tensile super flexible steel wire, four plies≥ 1 million impulse cycles(comply with ISO18752-DC standard)

　　Outer Layer: skiving-free black smooth/narrow cloth texture hose cover made of anti-aging synthetic rubber

　　Features: High pressure，Low bending radius，Long service life(weather resistant for more than 5 years and warrantied for 2 years with Letone specific hose connectors)

　　Temperature Range: -40℃~+121℃(-40℉~+250℉)
