您所在的位置：首頁 > 產品及解決方案 > 液壓軟管流體連接件 > 英制螺紋軟管接頭 > 英管螺紋球面密封
45°英管內螺紋球面

在線咨詢
全國服務熱線 ：
400-6191-666
45°英管內螺紋球面
數據展示

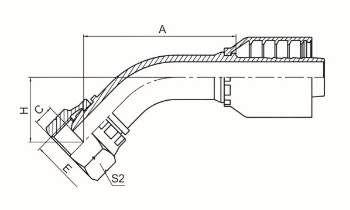

代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱內徑 DN 標號DASH A    C       H      S2
22141-02-04RW -- G1/8”X28 6 04 44.9 2 21.3 14
22141-04-04RW -- G1/4”X19 6 04 44.9 4 21.3 19
22141-06-05RW -- G3/8”X19 8 05 47.7 5 22.9 22
22141-06-06RW -- G3/8”X19 10 06 48.8 5 23.6 22
22141-06-08RW 22142-06-08RW G3/8”X19 12 08 62.2 5 25.8 22
22141-08-04TRW -- G1/2”X14 6 04 45.2 6 21.6 27
22141-08-06TRW -- G1/2”X14 10 06 48.4 6 23.2 27
22141-08-08RW 22142-08-08RW G1/2”X14 12 08 63.6 6 27.2 27
22141-08-10RW 22142-08-10RW G1/2”X14 16 10 73.8 6 28.5 27
22141-10-10RW 22142-10-10RW G5/8”X14 16 10 74.1 8 28.8 30
22141-10-12RW 22142-10-12RW G5/8”X14 20 12 77.4 8 31.6 30
22141-12-08TRW 22142-12-08TRW G3/4”X14 12 08 62.2 9.5 25.8 32
22141-12-10TRW 22142-12-10TRW G3/4”X14 16 10 72.4 9.5 27.1 32
22141-12-12RW 22142-12-12RW G3/4”X14 20 12 78.1 9.5 32.3 32
22141-16-12TRW 22142-16-12TRW G1”X11 20 12 75.7 11 29.9 41
22141-16-16RW 22142-16-16RW G1”X11 25 16 91.4 11 35 41
22141-20-16TRW 22142-20-16TRW G1.1/4”X11 25 16 90 11 33.6 50
22141-20-20WRW 22142-20-20RW G1.1/4”X11 32 20 101 10 41.9 50
22141-24-24WRW 22142-20-21RW G1.1/2”X11 40 24 121.7 11.5 49 55
22141-32-32WRW 22142-32-32RW G2”X11 50 32 146.7 15 56.9 70


注：實際參數以最新圖冊為準
