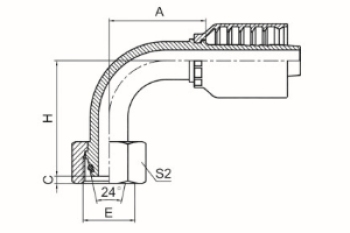

代 號 PART NO. | 螺紋E | 膠 管 HOSE BORE | 管子外徑 | O形圈 | 尺寸 DIMENSIONS | |||||
編織 BRAIDED | 纏繞 SPIRAL | THREADE | 公稱(chēng)內徑 DN | 標號DASH | TUBE O.D. | O RING | A | C | H | S2 |
20591-14-04TRW | -- | M14X1.5 | 6 | 04 | 6 | O04.5X1.5 | 31.5 | 1.1 | 36.9 | 17 |
20591-16-04TRW | -- | M16X1.5 | 6 | 04 | 8 | O06.5X1.5 | 31.5 | 1.5 | 37.5 | 19 |
20591-16-05TRW | -- | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 34.5 | 1.5 | 40.5 | 19 |
20591-18-04TRW | -- | M18X1.5 | 6 | 04 | 10 | O08.0X1.5 | 31.5 | 1.5 | 39 | 22 |
20591-18-06TRW | -- | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 36.3 | 1.5 | 44.3 | 22 |
20591-20-06TRW | -- | M20X1.5 | 10 | 06 | 12 | O10.0X1.5 | 36.3 | 2.5 | 44.8 | 24 |
20591-20-08WRW | 20592-20-08WRW | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 42.5 | 2.5 | 54.5 | 24 |
20591-22-06TRW | -- | M22X1.5 | 10 | 06 | 14 | O11.0X2.0 | 36.3 | 2.5 | 44.8 | 27 |
20591-22-08TRW | 20592-22-08TRW | M22X1.5 | 12 | 08 | 14 | O11.0X2.0 | 42.5 | 2.5 | 50 | 27 |
20591-24-06TRW | -- | M24X1.5 | 10 | 06 | 16 | O13.0X2.0 | 36.3 | 3 | 44.8 | 30 |
20591-24-08TRW | 20592-24-08TRW | M24X1.5 | 12 | 08 | 16 | O13.0X2.0 | 42.5 | 3 | 50 | 30 |
20591-30-10TRW | 20592-30-10TRW | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 57 | 2.5 | 58.5 | 36 |
20591-30-12TRW | 20592-30-12TRW | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 63.2 | 2.5 | 65 | 36 |
20591-36-12TRW | 20592-36-12TRW | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 63.2 | 3 | 65.3 | 46 |
20591-42-12TRW | 20592-42-12TRW | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 63.2 | 4 | 67.1 | 50 |
20591-42-16TRW | 20592-42-16TRW | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 78.9 | 4 | 75.6 | 50 |
20591-52-20TRW | 20592-52-20TRW | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 92.7 | 4.5 | 87 | 60 |
20591-52-24TRW | 20592-52-24TRW | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 111.4 | 4.5 | 100.5 | 60 |
注:實(shí)際參數以最新圖冊為準
