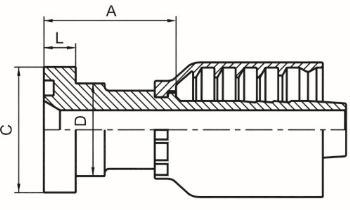

| 代 號 PART NO. | 法蘭型號 | 膠 管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 編織 BRAIDED | 纏繞 SPIRAL | FLANGE SIZE | 公稱(chēng)內徑 DN | 標號DASH | A | C | D | L |
| 87611-08-08RW | 87612-08-08RW | 1/2” | 12 | 08 | 48.5 | 31.7 | 24 | 7.75 |
| 87611-12-08RW | 87612-12-08RW | 3/4” | 12 | 08 | 51.5 | 41.3 | 32 | 8.76 |
| 87611-12-10RW | 87612-12-10RW | 3/4” | 16 | 10 | 52 | 41.3 | 32 | 8.76 |
| 87611-12-12RW | 87612-12-12RW | 3/4” | 20 | 12 | 51 | 41.3 | 32 | 8.76 |
| 87611-12-16RW | 87612-12-16RW | 3/4” | 25 | 16 | 54.2 | 41.3 | 32 | 8.76 |
| 87611-16-12RW | 87612-16-12RW | 1” | 20 | 12 | 56 | 47.6 | 38 | 9.53 |
| 87611-16-16RW | 87612-16-16RW | 1” | 25 | 16 | 59.2 | 47.6 | 38 | 9.53 |
| 87611-16-20RW | 87612-16-20RW | 1” | 32 | 20 | 59.2 | 47.6 | 38 | 9.53 |
| 87611-20-16RW | 87612-20-16RW | 1.1/4” | 25 | 16 | 67.2 | 54 | 44 | 10.29 |
| 87611-20-20RW | 87612-20-20RW | 1.1/4” | 32 | 20 | 67.2 | 54 | 44 | 10.29 |
| 87611-24-20RW | 87612-24-20RW | 1.1/2” | 32 | 20 | 76.2 | 63.5 | 51 | 12.57 |
| 87611-24-24RW | 87612-24-24RW | 1.1/2” | 40 | 24 | 77 | 63.5 | 51 | 12.57 |
| 87611-32-24RW | 87612-32-24RW | 2” | 40 | 24 | 88 | 79.4 | 67 | 12.57 |
| 87611-32-32RW | 87612-32-32RW | 2” | 50 | 32 | 91.5 | 79.4 | 67 | 12.57 |
注：實(shí)際參數以最新圖冊為準
