英錐管外螺紋

在線咨詢
全國服務熱線 :
英錐管外螺紋
數據展示

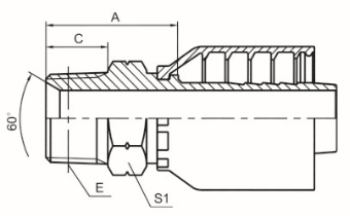

代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱內徑 DN 標號DASH A C  S1
13011-02-04SPRW -- R1/8”X28 6 04 22 10 12
13011-04-04SPRW -- R1/4”X28 6 04 26.5 14.5 14
13011-04-05SPRW -- R1/4”X28 8 05 27.4 15.4 14
13011-04-06SPRW -- R1/4”X28 10 06 26 14.5 17
13011-06-04SPRW -- R3/8”X19 6 04 27 15 17
13011-06-05SPRW -- R3/8”X19 8 05 27 15 17
13011-06-06SPRW -- R3/8”X19 10 06 26.5 15 17
13011-06-08SPRW 13012-06-08SPRW R3/8”X19 12 08 27.5 15 19
13011-08-06SPRW -- R1/2”X14 10 06 33.5 20 22
13011-08-08SPRW 13012-08-08SPRW R1/2”X14 12 08 34.5 20 22
13011-08-10SPRW 13012-08-10SPRW R1/2”X14 10 06 33.5 20 22
13011-08-12SPRW 13012-08-12SPRW R1/2”X14 20 12 36 20 27
13011-12-08SPRW 13012-12-08SPRW R3/4”X14 12 08 36.5 20 27
13011-12-10SPRW 13012-12-10SPRW R3/4”X14 16 10 37 20 27
13011-12-12SPRW 13012-12-12SPRW R3/4”X14 20 12 36 20 27
13011-12-16SPRW 13012-12-16SPRW R3/4”X14 25 16 40.2 20 32
13011-16-12SPRW 13012-16-12SPRW R1”X11 20 12 42.5 25.5 36
13011-16-16SPRW 13012-16-16SPRW R1”X11 25 16 45.7 25.5 36
13011-20-20SPRW 13012-20-20SPRW R1.1/4”X11 32 20 48.7 26.5 46
13011-24-24SPRW 13012-24-24SPRW R1.1/2”X11 40 24 51.5 26.5 50
13011-32-24SPRW 13012-32-24SPRW R2”X11 40 24 57 30 65
13011-32-32SPRW 13012-32-32SPRW R2”X11 50 32 60.5 30 65


注:實際參數以最新圖冊為準
