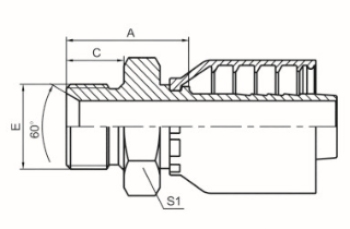

代 號 PART NO. | 螺紋E | 膠 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
編織 BRAIDED | 纏繞 SPIRAL | THREADE | 公稱(chēng)內徑 DN | 標號DASH | A | C | S1 |
10611-14-04RW | -- | M14X1.5 | 6 | 04 | 23 | 11 | 19 |
10611-14-06RW | -- | M14X1.5 | 10 | 06 | 22.5 | 11 | 19 |
10611-16-04RW | -- | M16X1.5 | 6 | 04 | 26 | 12 | 22 |
10611-16-05RW | -- | M16X1.5 | 8 | 05 | 26 | 12 | 22 |
10611-18-06RW | -- | M18X1.5 | 10 | 06 | 25.5 | 12 | 24 |
10611-22-06RW | -- | M22X1.5 | 10 | 06 | 29.5 | 14 | 27 |
10611-22-08RW | 10612-22-08RW | M22X1.5 | 12 | 08 | 30.5 | 14 | 27 |
10611-24-10RW | 10612-24-10RW | M24X1.5 | 16 | 10 | 31 | 14 | 30 |
10611-26-10RW | 10612-26-10RW | M26X1.5 | 16 | 10 | 34 | 16 | 32 |
10611-27-10DRW | 10612-27-10DRW | M27X1.5 | 16 | 10 | 34 | 16 | 32 |
10611-27-10DRW | 10612-27-10DRW | M27X2 | 16 | 10 | 36 | 18 | 32 |
10611-30-12DRW | 10612-30-12DRW | M30X1.5 | 20 | 12 | 35 | 18 | 36 |
10611-30-12RW | 10612-30-12RW | M30X2 | 20 | 12 | 35 | 18 | 36 |
10611-33-16RW | 10612-33-16RW | M33X2 | 25 | 16 | 42.2 | 20 | 46 |
10611-42-20RW | 10612-42-20RW | M42X2 | 32 | 20 | 44.2 | 20 | 50 |
10611-45-20RW | 10612-45-20RW | M45X2 | 32 | 20 | 44.2 | 20 | 55 |
10611-48-24RW | 10612-48-24RW | M48X2 | 40 | 24 | 45 | 20 | 55 |
10611-52-24RW | 10612-52-24RW | M52X2 | 40 | 24 | 45 | 20 | 60 |
