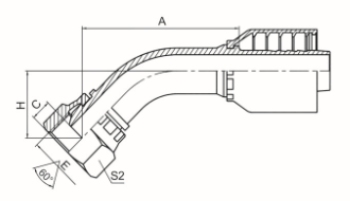

45°公制內螺紋60°外錐面

代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱內徑 DN 標號DASH A   C   H  S2
20641-12-04RW -- M12X1.5 6 04 44.1 4.5 20.5 17
20641-14-04TRW -- M14X1.5 6 04 42.4 5 18.8 19
20641-16-05TRW -- M16X1.5 8 05 44.8 6 20 22
20641-16-06RW -- M16X1.5 10 06 47.7 5.5 22.5 22
20641-18-06TRW -- M18X1.5 10 06 47 5.5 21.8 22
20641-20-08RW 20642-20-08RW M20X1.5 12 08 62.9 6.5 26.5 27
20641-22-08TRW 20642-22-08TRW M22X1.5 12 08 60 6 23.6 27
20641-24-10RW 20642-24-10RW M24X1.5 16 10 73.8 6.5 28.5 30
20641-26-10TRW 20642-26-10TRW M26X1.5 16 10 72.4 6 27.1 32
20641-27-10DTRW 20642-27-10DTRW M27X1.5 16 10 72.4 6 27.1 32
20641-27-10TRW 20642-27-10TRW M27X2 16 10 72.4 8 27.1 32
20641-30-10DTRW 20642-30-10DTRW M30X1.5 16 10 73.1 5.5 27.8 36
20641-30-12DTRW 20642-30-12DTRW M30X1.5 20 12 76.4 5.5 30.6 36
20641-30-12TRW 20642-30-12TRW M30X2 20 12 76.4 5.5 30.6 36
20641-36-16TRW 20642-36-16TRW M36X2 25 16 89.6 6.5 33.2 41
20641-39-16TRW 20642-39-16TRW M39X2 25 16 91 6.5 34.6 46
20641-45-20TRW 20642-45-20TRW M45X2 32 20 100.6 8.5 38.7 55
20641-52-24TRW 20642-52-24TRW M52X2 40 24 115.7 10 43 60
