首頁(yè)> 產(chǎn)品展示 > 英制螺紋

英錐管外螺紋

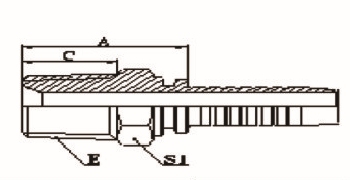

代  號 螺紋E 軟     管 尺     寸
公稱(chēng)內徑 標      號 A C  S1
13011-02-03SP R1/8”X28 5 03 22 10 12
13011-02-04SP R1/8”X28 6 04 22.5 10 12
13011-04-04SP R1/4”X19 6 04 27 14.5 14
13011-04-05SP R1/4”X19 8 05 25 15.4 14
13011-04-06SP R1/4”X19 10 06 27 14.5 17
13011-06-04SP R3/8”X19 6 04 27.5 15 17
13011-06-05SP R3/8”X19 8 05 26.5 15 17
13011-06-06SP R3/8”X19 10 06 27.5 15 17
13011-06-08SP R3/8”X19 12 08 30 15 19
13011-08-06SP R1/2”X14 10 06 34.5 20 22
13011-08-08SP R1/2”X14 12 08 35 20 22
13011-08-10SP R1/2”X14 16 10 38 20 22
13011-08-12SP R1/2”X14 20 12 38 20 27
13011-12-08SP R3/4”X14 12 08 37 20 27
13011-12-10SP R3/4”X14 16 10 38 20 27
13011-12-12SP R3/4”X14 20 12 38.5 20 27
13011-12-16SP R3/4”X14 25 16 39.5 20 32
13011-16-12SP R1”X11 20 12 44 25.5 36
13011-16-16SP R1”X11 25 16 45 25.5 36
13011-20-20SP R1.1/4”X11 32 20 49.5 26.5 46
13011-24-24SP R1.1/2”X11 40 24 52.5 26.5 50
13011-32-24SP R2”X11 40 24 57 30 65
13011-32-32SP R2”X11 50 32 59 30 65
注:1.上訴代號用于編制軟管。    2.如需用于纏繞軟管代碼號改為13012-xx-xx。
NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 13012-XX-XX.
