首頁(yè)> 產(chǎn)品展示 > 英制螺紋

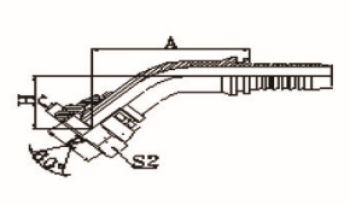

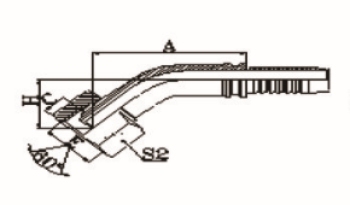

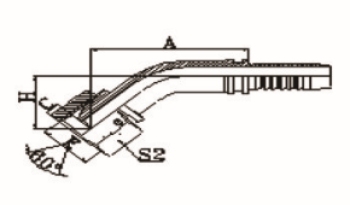

45°英管內螺紋60°外錐面

代  號 管子外徑D 軟     管 尺     寸
公稱(chēng)內徑 標      號 A    C       H      S2
22641-04-04 G1/4”X19 6 04 40 5.5 21 19
22641-06-04 G3/8”X19 6 04 43.2 6.3 21 22
22641-06-05 G3/8”X19 8 05 45.3 6.3 22 22
22641-06-06 G3/8”X19 10 06 47 6.3 24 22
22641-08-06T G1/2”X14 10 06 48.1 7.5 23.9 27
22641-08-08 G1/2”X14 12 08 59.5 7.5 27 27
22641-10-08 G5/8”X14 12 08 61.4 9.5 26.5 30
22641-10-10 G5/8”X14 16 10 63 9.5 29 30
22641-12-08T G3/4”X14 12 08 61.8 10.9 26.9 32
22641-12-10 G3/4”X14 16 10 63 10.9 29 32
22641-12-12 G3/4”X14 20 12 75.5 10.9 32 32
22641-16-12T G1”X11 20 12 80.8 11.7 33.4 41
22641-16-16 G1”X11 25 16 86 11.7 34 41
22641-20-16T G1.1/4”X11 25 16 85.3 11 31.1 50
22641-20-20W G1.1/4”X11 32 20 98.8 11 38 50
22641-24-24W G1.1/2”X11 40 24 116.8 13 45.5 55
22641-32-32W G/2”X11 50 32 135.7 16 52.7 70
注：1.上訴代號用于編制軟管。    2.如需用于纏繞軟管代碼號改為22642-xx-xx。
NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 22642-XX-XX.

詳細參數
