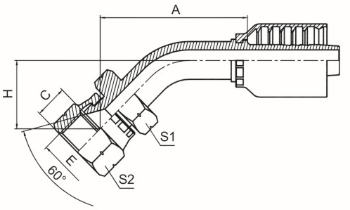

45°日本英制內螺紋60°內錐面 JIS B8363

代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREAD E 公稱(chēng)內徑 DN 標號DASH A C H  S1   S2
29641-04-04RW -- G1/4”X19 6 04 44.9 8 21.3 19 19
29641-06-06RW -- G3/8”X19 10 06 50.2 9 25 22 22
29641-08-08RW 29642-08-08RW G1/2”X14 12 08 63.9 12 27.5 27 27
29641-10-10RW 29642-10-10RW G5/8”X14 16 10 76.6 11.5 31.3 30 30
29641-12-12RW 29642-12-12RW G3/4”X14 20 12 79.9 13.5 34.1 32 32
29641-16-16RW 29642-16-16RW G1”X14 25 16 93.2 16 36.8 41 41
29641-20-20WRW 29642-20-20WRW G1.1/4”X11 32 20 107 18.5 45.1 50 50
29641-24-24WRW 29642-24-24WRW G1.1/2”X11 40 24 122.8 19 50.1 55 55
29641-32-32WRW 29642-32-32WRW G2”X11 50 32 149.9 23 60.1 70 70
