代 號 PART NO. | 法蘭型號 | 膠 管 HOSE BORE | 尺寸 DIMENSIONS | |||||

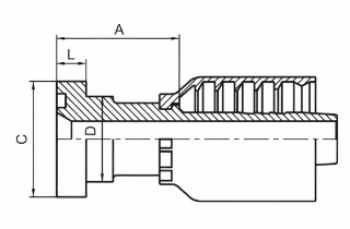

編織 BRAIDED | 纏繞 SPIRAL | FLANGE SIZE | 公稱(chēng)內徑 DN | 標號DASH | A | C | D | L |
88111-10-08RW | 88112-10-08RW | 5/8” | 12 | 08 | 46.5 | 34.2 | 27.8 | 6.7 |
88111-10-10RW | 88112-10-10RW | 5/8” | 16 | 10 | 47 | 34.2 | 27.8 | 6.7 |
88111-10-12RW | 88112-10-12RW | 5/8” | 20 | 12 | 46 | 34.2 | 27.8 | 6.7 |
