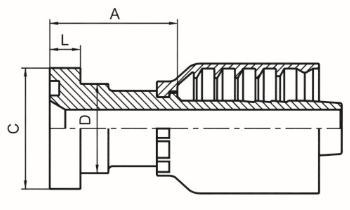

代 號 PART NO. | 法蘭型號 | 膠 管 HOSE BORE | 尺寸 DIMENSIONS | |||||
編織 BRAIDED | 纏繞 SPIRAL | FLANGE SIZE | 公稱(chēng)內徑 DN | 標號DASH | A | C | D | L |
87311-08-08RW | 87311-08-08RW | 1/2” | 12 | 08 | 47.5 | 30.2 | 24 | 6.73 |
87311-12-08RW | 87311-12-08RW | 3/4” | 12 | 08 | 48.5 | 38.1 | 31.7 | 6.73 |
87311-12-10RW | 87311-12-10RW | 3/4” | 16 | 10 | 49 | 38.1 | 31.7 | 6.73 |
87311-12-12RW | 87311-12-12RW | 3/4” | 20 | 12 | 48 | 38.1 | 31.7 | 6.73 |
87311-12-16RW | 87311-12-16RW | 3/4” | 25 | 16 | 51.2 | 38.1 | 31.7 | 6.73 |
87311-16-12RW | 87311-16-12RW | 1” | 20 | 12 | 51 | 44.4 | 38 | 8 |
87311-16-16RW | 87311-16-16RW | 1” | 25 | 16 | 54.2 | 44.4 | 38 | 8 |
87311-16-20RW | 87311-16-20RW | 1” | 32 | 20 | 54.2 | 44.4 | 38 | 8 |
87311-20-16RW | 87311-20-16RW | 1.1/4” | 25 | 16 | 59.2 | 50.8 | 43 | 8 |
87311-20-20RW | 87311-20-20RW | 1.1/4” | 32 | 20 | 59.2 | 50.8 | 43 | 8 |
87311-24-20RW | 87311-24-20RW | 1.1/2” | 32 | 20 | 69.2 | 60.3 | 50 | 8 |
87311-24-24RW | 87311-24-24RW | 1.1/2” | 40 | 24 | 70 | 60.3 | 50 | 8 |
87311-32-24RW | 87311-32-24RW | 2” | 40 | 24 | 72 | 71.4 | 62 | 9.53 |
87311-32-32RW | 87311-32-32RW | 2” | 50 | 32 | 75.5 | 71.4 | 62 | 9.53 |
