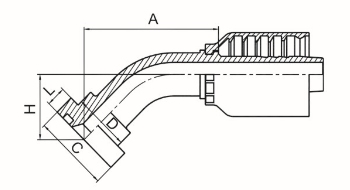

45°SAE 法蘭3000PSI

代  號 PART NO. 法蘭型號 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL FLANGE SIZE 公稱(chēng)內徑 DN 標號DASH A C D H L
87341-08-08RW 87342-08-08RW 1/2” 12 08 59.7 30.2 24 23.3 6.73
87341-12-08RW 87342-12-08RW 3/4” 12 08 60.4 38.1 31.7 24 6.73
87341-12-10RW 87342-12-10RW 3/4” 16 10 70.6 38.1 31.7 25.3 6.73
87341-12-12RW 87342-12-12RW 3/4” 20 12 73.9 38.1 31.7 28.1 6.73
87341-12-16RW 87342-12-16RW 3/4” 25 16 86.1 38.1 31.7 29.7 6.73
87341-16-12RW 87342-16-12RW 1” 20 12 73.9 44.4 38 28.1 8
87341-16-16RW 87342-16-16RW 1” 25 16 86.1 44.4 38 29.7 8
87341-16-20RW 87342-16-20RW 1” 32 20 95.7 44.4 38 33.8 8
87341-20-16RW 87342-20-16RW 1.1/4” 25 16 86.1 50.8 43 29.7 8
87341-20-20RW 87342-20-20RW 1.1/4” 32 20 95.7 50.8 43 33.8 8
87341-24-20RW 87342-24-20RW 1.1/2” 32 20 97.1 60.3 50 35.2 8
87341-24-24RW 87342-24-24RW 1.1/2” 40 24 111.8 60.3 50 39.1 8
87341-32-24RW 87342-32-24RW 2” 40 24 111.8 71.4 62 39.1 9.53
87341-32-32RW 87342-32-32RW 2” 50 32 136.1 71.4 62 46.3 9.53
