首頁(yè)> 產(chǎn)品展示 > 美制螺紋

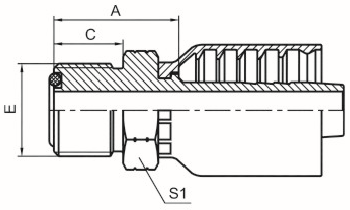

美制ORFS外螺紋平面O形圈密封 ISO 8434-3 SAE J1453

代  號 PART NO. 螺紋E 膠 管 HOSE BORE O形圈 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱(chēng)內徑 DN 標號DASH O RING A C  S2
14211-04-04RW -- 9/16”X18 6 04 O011 21.8 9.8 17
14211-06-04RW -- 11/16”X16 6 04 O012 23.2 11.2 19
14211-06-06RW -- 11/16”X16 10 06 O012 22.7 11.2 19
14211-08-06RW -- 13/16”X16 10 06 O014 26.3 12.8 22
14211-08-08RW 14212-08-08RW 13/16”X16 12 08 O014 27.3 12.8 22
14211-08-10RW 14212-08-10RW 13/16”X16 16 10 O014 27.8 12.8 22
14211-10-08RW 14212-10-08RW 1”X14 12 08 O016 32 15.5 27
14211-10-10RW 14212-10-10RW 1”X14 16 10 O016 32.5 15.5 27
14211-12-08RW 14212-12-08RW 1.3/16”X12 12 08 O018 34.5 17 32
14211-12-10RW 14212-12-10RW 1.3/16”X12 16 10 O018 35 17 32
14211-12-12RW 14212-12-12RW 1.3/16”X12 20 12 O018 34 17 32
14211-16-12RW 14212-16-12RW 1.7/16”X12 20 12 O021 34.5 17.5 38
14211-16-16RW 14212-16-16RW 1.7/16”X12 25 16 O021 37.7 17.5 38
14211-20-20RW 14212-20-20RW 1.11/16”X12 32 20 O025 39.7 17.5 46
14211-24-24RW 14212-24-24RW 2”X12 40 24 O029 42.5 17.5 55



詳細參數
