首頁(yè)> 產(chǎn)品展示 > 美制螺紋

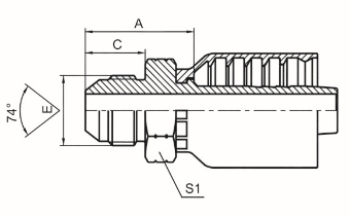

美制JIC外螺紋74°外錐面 ISO 8434-2 SAE J514

代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱(chēng)內徑 DN 標號DASH A C  S1
16711-04-04RW -- 7/16”X20 6 04 26 14 12
16711-05-04RW -- 1/2”X20 6 04 26 14 14
16711-05-05RW -- 1/2”X20 8 05 26 14 14
16711-05-06RW -- 1/2”X20 10 06 25.5 14 17
16711-06-04RW -- 9/16”X18 6 04 26.1 14.1 17
16711-06-05RW -- 9/16”X18 8 05 26.1 14.1 17
16711-06-06RW -- 9/16”X18 10 06 25.6 14.1 17
16711-08-06RW -- 3/4”X16 10 06 30.2 16.7 22
16711-08-08RW 16712-08-08RW 3/4”X16 12 08 31.2 16.7 22
16711-10-06RW -- 7/8”X14 10 06 32.8 19.3 24
16711-10-08RW 16712-10-08RW 7/8”X14 12 08 33.8 19.3 24
16711-10-10RW 16712-10-10RW 7/8”X14 16 10 34.3 19.3 24
16711-12-08RW 16712-12-08RW 1.1/16”X12 12 08 38.4 21.9 27
16711-12-10RW 16712-12-10RW 1.1/16”X12 16 10 38.9 21.9 27
16711-12-12RW 16712-12-12RW 1.1/16”X12 20 12 37.9 21.9 27
16711-12-16RW 16712-12-16RW 1.1/16”X12 25 16 41.1 21.9 30
16711-14-10RW 16712-14-10RW 1.3/16”X12 16 10 40.6 22.6 32
16711-14-12RW 16712-14-12RW 1.3/16”X12 20 12 39.6 22.6 32
16711-16-12RW 16712-16-12RW 1.5/16”X12 20 12 40.1 23.1 36
16711-16-16RW 16712-16-16RW 1.5/16”X12 25 16 43.3 23.1 36
16711-20-16RW 16712-20-16RW 1.5/8”X12 25 16 46.5 24.3 46
16711-20-20RW 16712-20-20RW 1.5/8”X12 32 20 46.5 24.3 46
16711-24-20RW 16712-24-20RW 1.7/8”X12 32 20 51.7 27.5 50
16711-24-24RW 16712-24-24RW 1.7/8”X12 40 24 52.5 27.5 50
16711-32-32RW 16712-32-32RW 2.1/2”X12 50 32 64.4 33.9 65
