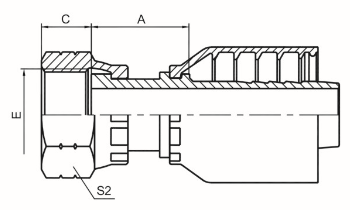

代 號 PART NO. | 螺紋E | 膠 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
編織 BRAIDED | 纏繞 SPIRAL | THREADE | 公稱(chēng)內徑 DN | 標號DASH | A | C | S2 |
24211-04-04RW | -- | 9/16”X18 | 6 | 04 | 24 | 8.5 | 19 |
24211-04-05RW | -- | 9/16”X18 | 8 | 05 | 24 | 8.5 | 19 |
24211-04-06RW | -- | 9/16”X18 | 10 | 06 | 24 | 8.5 | 19 |
24211-06-04TRW | -- | 11/16”X16 | 6 | 04 | 26 | 10 | 22 |
24211-06-05TRW | -- | 11/16”X16 | 8 | 05 | 26 | 10 | 22 |
24211-06-06RW | -- | 11/16”X16 | 10 | 06 | 27 | 10 | 22 |
24211-06-08RW | 24212-06-08RW | 11/16”X16 | 12 | 08 | 28 | 10 | 22 |
24211-08-05TRW | -- | 13/16”X16 | 8 | 05 | 27.5 | 11 | 27 |
24211-08-06TRW | -- | 13/16”X16 | 10 | 06 | 27 | 11 | 27 |
24211-08-08RW | 24212-08-08RW | 13/16”X16 | 12 | 08 | 30 | 11 | 27 |
24211-08-10RW | 24212-08-10RW | 13/16”X16 | 16 | 10 | 30.5 | 11 | 27 |
24211-10-08TRW | 24212-10-08TRW | 1”X14 | 12 | 08 | 32 | 13.5 | 30 |
24211-10-10RW | 24212-10-10RW | 1”X14 | 16 | 10 | 34.5 | 13.5 | 30 |
24211-10-12RW | 24212-10-12RW | 1”X14 | 20 | 12 | 34 | 13.5 | 30 |
24211-12-08TRW | 24212-12-08TRW | 1.3/16”X12 | 12 | 08 | 33.5 | 15 | 36 |
24211-12-10TRW | 24212-12-10TRW | 1.3/16”X12 | 16 | 10 | 34 | 15 | 36 |
24211-12-12TRW | 24212-12-12TRW | 1.3/16”X12 | 20 | 12 | 33 | 15 | 36 |
24211-12-16RW | 24212-12-16RW | 1.3/16”X12 | 25 | 16 | 38.7 | 15 | 36 |
24211-16-12TRW | 24212-16-12TRW | 1.7/16”X12 | 20 | 12 | 34 | 14.8 | 41 |
24211-16-16TRW | 24212-16-16TRW | 1.7/16”X12 | 16 | 10 | 35 | 14.8 | 41 |
24211-16-20RW | 24212-16-20RW | 1.7/16”X12 | 32 | 20 | 41.2 | 14.8 | 41 |
24211-20-16TRW | 24212-20-16TRW | 1.11/16”X12 | 25 | 16 | 38.2 | 15 | 50 |
24211-20-20WRW | 24212-20-20WRW | 1.11/16”X12 | 32 | 20 | 45.2 | 15 | 50 |
24211-20-24WRW | 24212-20-24WRW | 1.11/16”X12 | 40 | 24 | 46 | 15 | 50 |
24211-24-20TRW | 24212-24-20TRW | 2”X12 | 32 | 20 | 38.2 | 14.8 | 60 |
24211-24-24TRW | 24212-24-24TRW | 2”X12 | 40 | 24 | 39 | 14.8 | 60 |
