首頁(yè)> 產(chǎn)品展示 > 美制螺紋

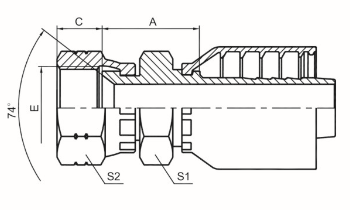

美制JIC內螺紋74°內錐面雙六角 SAE J514

代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱(chēng)內徑 DN 標號DASH A C  S1    S2
26711D-04-04RW -- 7/16”X20 6 04 20 9 17 15
26711D-05-05RW -- 1/2”X20 8 05 20.5 9.5 17 17
26711D-06-06RW -- 9/16”X18 10 06 20 10.5 19 19
26711D-08-08RW 26712D-08-08RW 3/4”X16 12 08 25 11 24 24
26711D-10-08RW 26712D-10-08RW 7/8”X14 12 08 27.5 13 27 27
26711D-10-10RW 26712D-10-10RW 7/8”X14 16 10 28 13 27 27
26711D-12-12RW 26712D-12-12RW 1.1/16”X12 20 12 29.5 15 32 32
26711D-16-16RW 26712D-16-16RW 1.5/16”X12 25 16 34.7 16 41 41
26711D-20-20WRW 26712D-20-20WRW 1.5/8”X12 32 20 41.2 17 50 50
26711D-24-24WRW 26712D-24-24WRW 1.7/8”X12 40 24 43 20 55 55
26711D-32-32WRW 26712D-32-32WRW 2.1/2”X12 50 32 49 23.5 75 75
