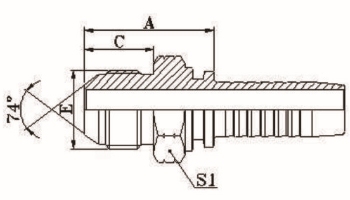

美制JIC外螺紋74°外錐面

代  號 螺紋E 軟     管 尺     寸
公稱(chēng)內徑 標      號 A C  S1
16711-04-03 7/16”X20 5 03 26 14 12
16711-04-04 7/16”X20 6 04 26 14 12
16711-05-04 1/2”X20 6 04 26 14 14
16711-05-05 1/2”X20 8 05 26 14 14
16711-05-06 1/2”X20 10 06 26.5 14 17
16711-06-04 9/16”X18 6 04 26.5 14.1 17
16711-06-05 9/16”X18 8 05 26.5 14.1 17
16711-06-06 9/16”X18 10 06 26.5 14.1 17
16711-08-06 3/4”X16 10 06 30.7 16.7 22
16711-08-08 3/4”X16 12 08 31.2 16.7 22
16711-10-06 7/8”X14 10 06 34.3 19.3 24
16711-10-08 7/8”X14 12 08 34 19.3 24
16711-10-10 7/8”X14 16 10 35.8 19.3 24
16711-12-08 1.1/16”X12 12 08 38.5 21.9 30
16711-12-10 1.1/16”X12 16 10 39.4 21.9 30
16711-12-12 1.1/16”X12 20 12 39.4 21.9 30
16711-12-16 1.1/16”X12 25 16 42 21.9 30
16711-14-10 1.3/16”X12 16 10 41.5 22.6 32
16711-14-12 1.3/16”X12 20 12 40.5 22.6 32
16711-16-12 1.5/16”X12 20 12 43.6 23.1 36
16711-16-16 1.5/16”X12 25 16 45.1 23.1 36
16711-20-16 1.5/8”X12 25 16 47 24.3 46
16711-20-20 1.5/8”X12 32 20 48.3 24.3 46
16711-24-20 1.7/8”X12 32 20 53 27.5 50
16711-24-24 1.7/8”X12 40 24 53.5 27.5 50
16711-32-32 2.1/2”X12 50 32 62.9 33.9 60
注：1.上訴代號用于編制軟管。    2.如需用于纏繞軟管代碼號改為16712-xx-xx。
NOTE : 1.FOR USE WITH BRAIDED HOSES   2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 16712-XX-XX.
