首頁(yè)> 產(chǎn)品展示 > 美制螺紋

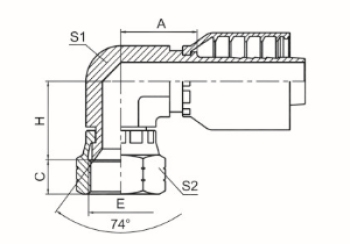

90°美制短身JIC內螺紋74°內錐面SAE J514

代  號 PART NO. 螺紋E 膠 管 HOSE BORE 尺寸 DIMENSIONS
編織 BRAIDED 纏繞 SPIRAL THREADE 公稱(chēng)內徑 DN 標號DASH A C H  S1   S2
26791K-04-04RW -- 7/16”X20 6 04 19 9 18 11 15
26791K-06-04RW -- 9/16”X18 6 04 20 10.5 21 14 19
26791K-06-06RW -- 9/16”X18 10 06 21 10.5 21 16 19
26791K-08-06RW -- 3/4”X16 10 06 23.5 11 25 19 24
26791K-08-08RW 26792K-08-08RW 3/4”X16 12 08 24 11 25 22 24
26791K-10-08RW 26792K-10-08RW 7/8”X14 12 08 25 13 27.5 22 27
26791K-10-10RW 26792K-10-10RW 7/8”X14 16 10 26.5 13 27.5 22 27
26791K-12-12RW 26792K-12-12RW 1.1/16”X12 20 12 27.5 15 30 27 32
26791K-16-16RW 26792K-16-16RW 1.5/16”X12 25 16 45.2 16 34.3 33 41



詳細參數
